With DuraCore/DuraBolt release r3.2 we have added the system Log Viewer, which mirrors the ability of the same feature in the Macintosh and Windows desktop applications.
- A tool shortcut button has been added to the DFE that, when clicked, expands to reveal available tools.
- Ink Use Calculator
- Print Marks Editor
- System Log Viewer - This is the feature we are concerned with in this article.
Clicking this button (4) will bring up the UI, below.

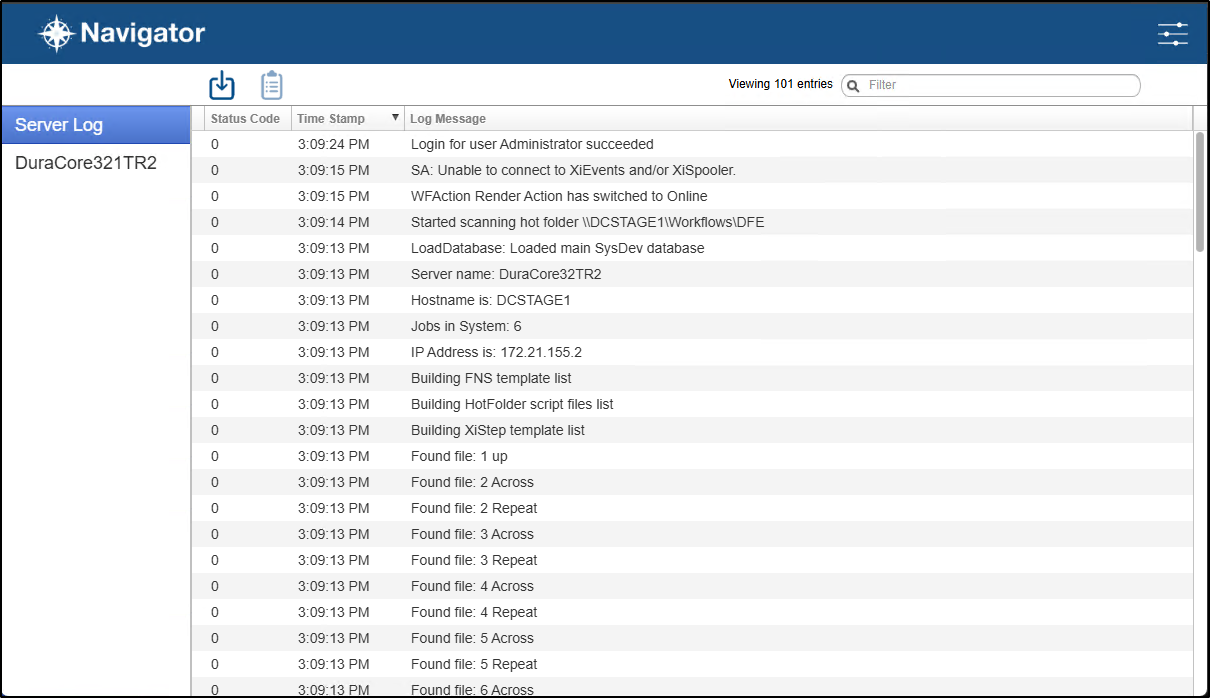

From this UI you can look at log messages and filter them to find certain events.

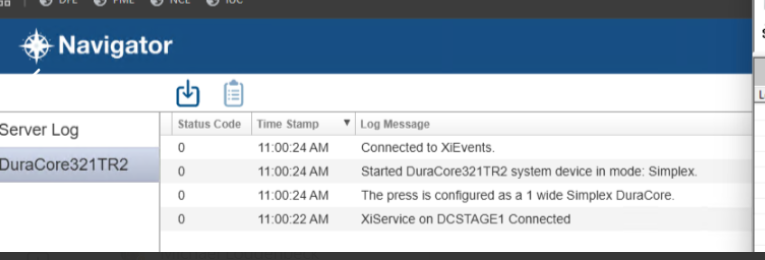

The Server Log is the Navigator Server's log file. The one with a device name (DuraCore321TR2) is a log for that device. Devices are made in the Server's Device Manager at Server/Manage Devices.
The Server log is written to a file at the root of the Navigator Server directory. The Device log is not written to disk. You can save or copy that log if you need to. We'll show you how, below.

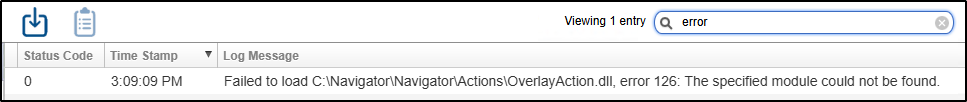

Filter the log with this field, located toward the top right of the UI.
Useful filter keywords: "error", "unexpected", "unable", "failed", "aborted", "fault", "warning", "start", "end".

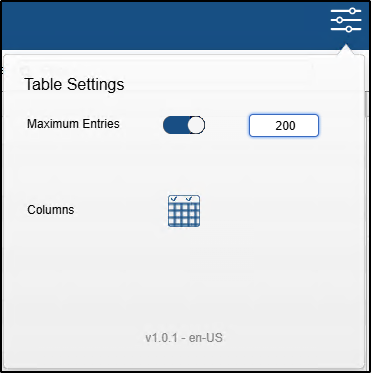

You can limit the maximum entries to the last few hundred to save waiting on a log file with tens of thousands of entries.
Here we limited it to the last 200 entries:

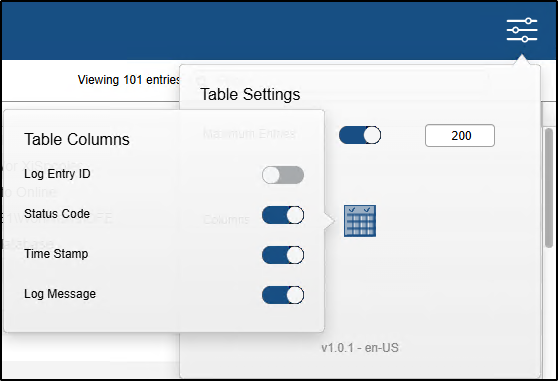

You can also turn on and off the columns if you want to narrow down your search to just one of the columns (for example).
Use the two buttons below to either download the log to a file or to copy the log to the clipboard.
Appendix. Error messages that occur in our system (Useful for filtering)
Call failed
startProcess failed
Cancelling RIP
Client not connected. Leaving
connect() failed
CopyFilesToRemoteShare - Failed
not launch process
not resolve host
couldn't get minilock
does not exist
Engine is not ready
State = FAULT
STATUS - FAULT
Error cleaning up JT
Error DE_INVALIDFILES
Error during
Error sending page
Error JSLAddPage
Error: Call failed
failed - Press closed connection
failed - returned
Failed to cancel
Failed to connect to
Failed to delete
Failed to find
Failed to get
Failed to log into
Failed to start
Failed to update host
Fatal Error
FAULT reported. Location
FILE_FORMAT
State Aborting
Initialization failed
Job aborted with [0-99] % done
Job ERRORED event
for an unknown reason
was cancelled by another client
was rejected
JobStatus ERRORED
JOB_COMPLETION - FAILED
thread init failed
Not connected to
Null context returned
OffendingCommand
Communications error
PerformOp() failed
transitioned to FAULT
Render Failed
RIP failed
without processing the job
RSYNC_OVERRUN_PEP
RSYNC_UNDERRUN_PEP
FAULT reported
was invalid
used by another process
Workflow Action failed
Thrift exception
Timed out waiting for response
Unable to locate
unable to open database file
Unable to SubmitRipJob
Unexpected errors returned
failed to delete
Warning: Loading CArchive
was not deleted
Render has switched to Offline
WFStep "Render" is not active
Timed-out
FAILED to open
